01.Daiki Axis Bangladesh Successfully Implements Johkasou STP at ACS Farmhouse (ACS Textile), Dumni, Khilkhet
PROJECT INFORMATION
- Project Name: ACS Farmhouse (ACS Textile)
- Category: Johkasou STP
- Capacity: 20m3/day
- Location: Dumni, Khilkhet
- Client: ACS Textile
- Year: 2021
Details of This Project

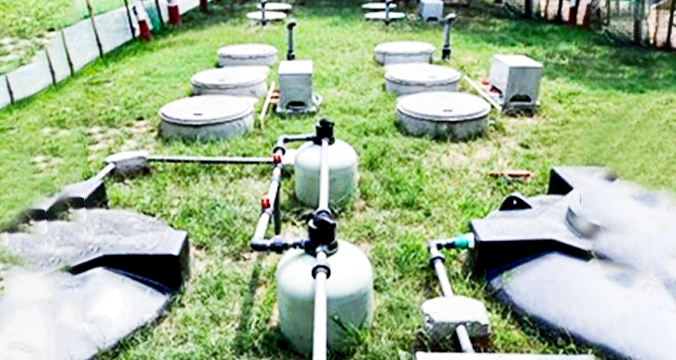

Daiki Axis Bangladesh, the leading sewage treatment plant supplier in Bangladesh, has successfully installed a Johkasou Sewage Treatment Plant (STP) at the ACS Farmhouse (ACS Textile), Dumni, Khilkhet. This Johkasou STP plant is used for sewage as well as cow dung and other animal dung. There is agitation in the raw water tank and also screening bar so that the waste from the pit can be separated by solid and liquid. The modules (2 nos BA 10) are installed parallelly which is capable of treating approximately 20 m3/day. The treated water is used for gardening. And through an overflow line in the treated water tank, the excess water goes into the drain.
This project reflects our commitment to providing eco-friendly and effective STP solutions across Bangladesh.
Features of this STP project
- Two BA 10 modules are installed in parallel to manage the capacity of 20 m³/day.
- Treated water is primarily reused for gardening purposes.
- Excess water is safely discharged into a drain through an overflow line.
- The system promotes waste recycling and reuse, reducing environmental impact.
Advantages:
- Versatile Waste Management: Effectively treats sewage, cow dung, and animal waste.
- Water Reuse: Treated water is reused for gardening, reducing water wastage and promoting sustainability.
- Cost and Space Efficiency: Compact modular design (BA 10 modules) ensures efficient use of space.
- Eco-Friendly: Environmentally safe disposal of treated water ensures compliance with environmental standards.
Process Flow of the STP
The Johkasou STP at the ACS Farmhouse (ACS Textile), Dumni, Khilkhet follows a systematic treatment process:
- Separation Box: Separate solids in wastewater by gravity and prevent the agitation of the excess sludge in Sedimentation & Separation Chamber by influent.
- Separation & Sedimentation Chamber: Separate solid debris or impurities from water in influent and circulated water and store these sediments in the chamber. Accumulated sludge should be desludged from the tank periodically at least once in 6–12 months.
- Anaerobic Chamber: It is filled with filter materials, which separate solids and keep anaerobic microorganisms to decompose organic matter.
- Moving Bed Chamber: It is filled with mesh cylindrical media, which retain aerobic microorganisms to decompose and remove organic matter from wastewater.
- Sedimentation Chamber: In order to obtain clear treated water, separate the excess sludge (suspended solids, SS) by gravity. The settled sludge is constantly returned to the sedimentation & separation chamber by the airlift pump.
- Disinfection Chamber: Disinfect the treated water to discharge to the river or other water bodies.
The entire system operates seamlessly, ensuring effective sewage treatment with minimal environmental impact.
Process Flow of This Project
Why Choose Daiki Axis Bangladesh for STP Solutions?
As a subsidiary of Daiki Japan, we bring the expertise and innovation of Japanese wastewater treatment technology to Bangladesh. Our commitment to quality ensures that each Johkasou system meets the specific needs of the Bangladeshi environment and supports a sustainable future.
- Expertise in implementing advanced Japanese sewage treatment technology.
- Compact, energy-efficient designs tailored to client needs.
- Proven track record of successful projects across Bangladesh.
The Johkasou STP at the ACS Farmhouse (ACS Textile), Dumni, Khilkhet is a perfect example of sustainable wastewater management.
Why STP needed everywhere in Bangladesh?
Sewage Treatment Plants (STP) are very important for Bangladesh to keep the environment clean and safe. With more people and industries growing every day, untreated sewage is causing serious problems. Dirty water from homes and factories often goes into rivers and ponds, making them unsafe for drinking, farming, or fishing. This pollution also harms fish and plants.
STP clean this dirty water, removing harmful things before it goes back into nature. Without proper treatment, sewage can spread diseases like cholera and diarrhea, putting many lives at risk. In crowded cities, STPs help manage waste, prevent bad smells, and stop water from flooding the streets. They also protect our natural surroundings and make sure water stays usable for future generations. As floods and rising sea levels become bigger challenges, STPs are needed to keep communities safe and healthy. Investing in STPs is an investment in a better, cleaner Bangladesh.
Bangladesh’s Urgent Need for Wastewater Treatment Solutions
Bangladesh, with its many rivers, relies on these waterways for farming, fishing, and transportation. But rapid growth in cities and industries has caused serious pollution. Rivers like the Buriganga are so polluted they can no longer support life, and others like the Shitalakhya, Turag, and Balu are also in danger.
Right now, only about 405 rivers are still active, and many of them are at risk due to pollution and illegal activities. This is a serious problem that needs to be solved quickly.
To protect our rivers, Bangladesh needs to adopt better wastewater treatment methods. One effective solution is the Johkasou system, which helps clean wastewater before it reaches the rivers. Here’s how it can help:
- Cut down on pollution: By cleaning wastewater before it flows into the rivers, we can reduce pollution.
- Help nature recover: Cleaner rivers will bring back fish and other wildlife, helping the environment heal.
- Follow the rules: The Johkasou system meets the standards set by the Department of Environment (DoE) and Environmental Conservation Rules (ECR), making sure wastewater is safely treated.
Bangladesh must act now. Treating wastewater will not only clean up our rivers but also protect public health and create a safer environment for everyone.
A Sustainable Future for Bangladesh
Investing in wastewater treatment isn’t just about cleaning up rivers—it’s about building a healthier, more sustainable future for Bangladesh. Taking action now can help preserve the country’s rivers, improve water quality, and protect the livelihoods of millions of people who rely on these waterways.
By choosing Daiki Axis Bangladesh, you get modern, reliable, and eco-friendly solutions tailored to your needs. Contact us today to learn more about our projects and services.
